Waste Management

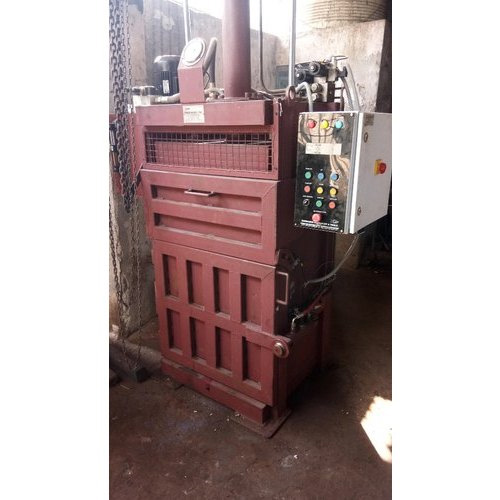

MODEL

:

SMHP-25T-21/22

Description

:

Semi auto bale press machine are highly suitable for very compact bailing of Woven Sacks waste, paper waste, pet bottle waste, Compact bales of waste made to facilitate minimize transportation cost, time & storage space.
Hand lever operated system

Operation

:

Inbuilt with Leakage valve and pressure switch which enhances the machine life and its accuracy.

Capacity (Ton)

:

25

Chamber Size (mm)

:

600X600X1400

Pressure ( Kg/cm2)

:

120kg

Mini. Bale Height (mm)
Bale dimension
Machine weight
Bale weight
Bale time

:

150
2x2x2 Feet
1.2ton
30 to 70 kg(depend on material)
10-15 minute

Type
No of cylinder

:

Vertical
01 Nos

Main Motor (Hp)
Motor

:

5Hp
ISI Make ( one year warranty)

Cycle time Approach speed
Pressing speed
Return speed
Approximate time for 1000mm travel

:

40mm/sec
17mm/sec
70mm/sec
30sec

Cylinder Stock (mm)

:

1000mm

Day Light Gap (mm)

:

1150mm

Oil Required Min. (Ltr)
Working Fluid

:

80-85litre(Life time oil)
Hydro Enclo 68 No

Dimension(Approx)

:

1000X700X2900mm ( L x W x H )

Features

:

Extra Heavy Duty M.S. Plate Fabricated structure
Four open pillar + Two guide Rod
Low maintenance cost
Overload Protection Valves
Rust Free self lubricated Guide

REQUIRE
LIST
FOR
MACHINE
INSTALL

Electronic component and oil,for purchasing you have to buy separately.
➢ External wiring cables, switches, push button, relay
➢ Oil Grade : 68No. hydraulic,
➢ Main Supply Wire: 6MM 4core
➢ Power supply: 3ØX415v
➢ Working Power:3.7kw

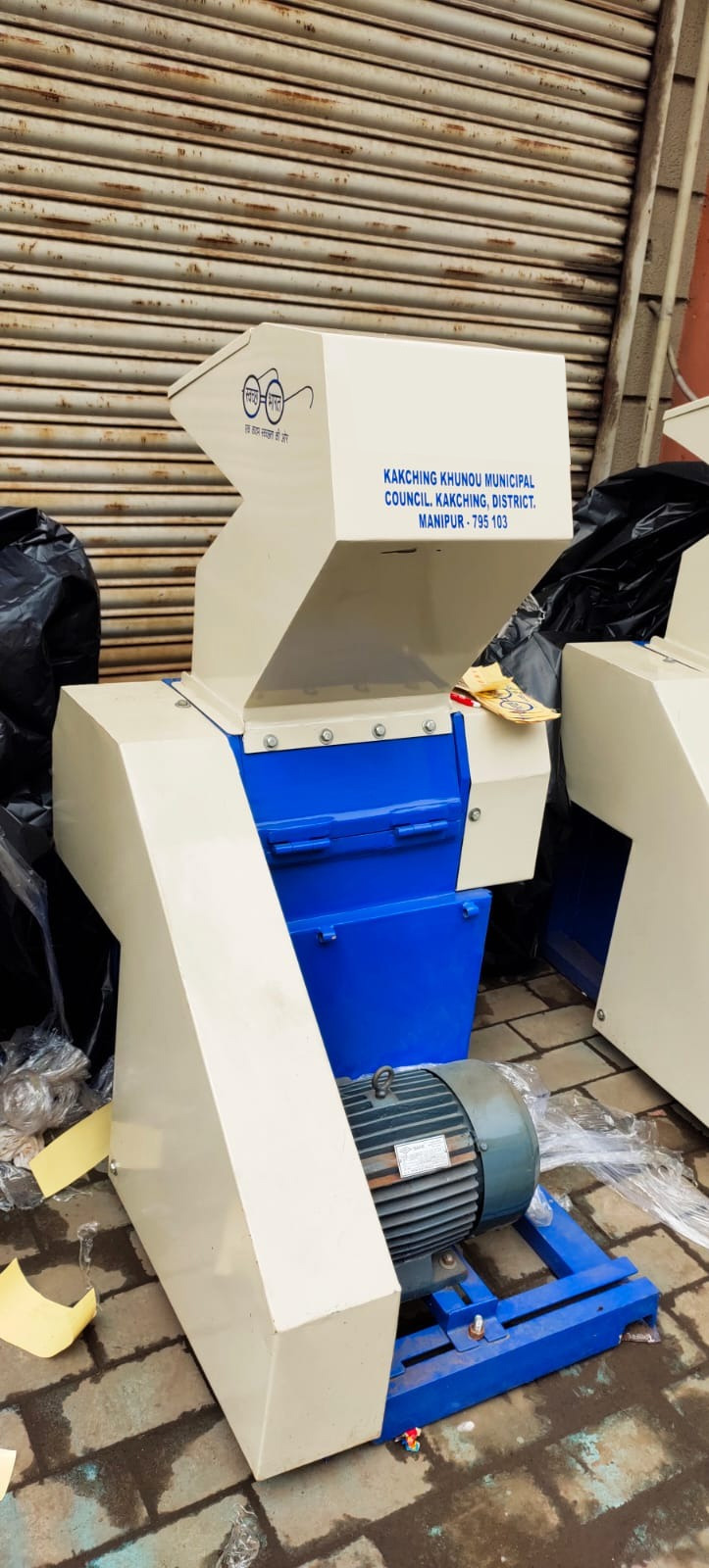

Sl

Specification

10 HP

1

Shredding Material

Waste

2

Shredding Capacity

1-500 kg/hr

3

Shredding Machine Type

Double Shaft

4

Usage/Application

Plastic Waste

5

Material

Mild Steel

6

Automation Grade

Automatic

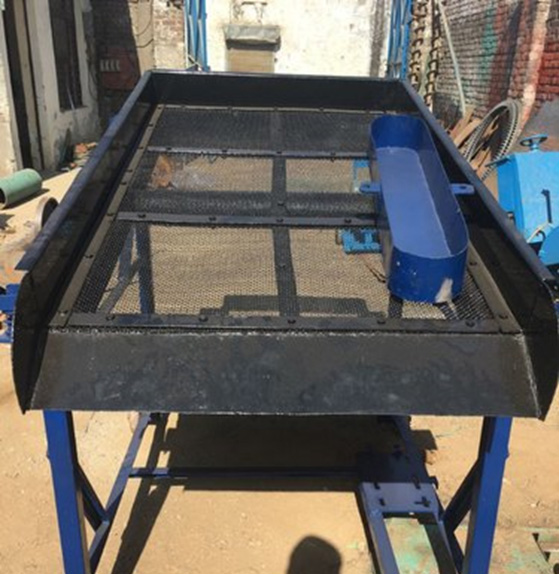

Sl

Specification

1

Overall Dimensions (LxWxH)

1500 X 900 X 1250

2

Weight (KG)

150 Kgs.

3

Power Source

Electrical or tractor PTO

4

Horse power of Motor Rotational

3Hp motor

5

Mesh

2 No

6

Replicable Mesh Size

4.7 mm & 2.36 MM

7

Mesh Tray

3ft X 5 ft

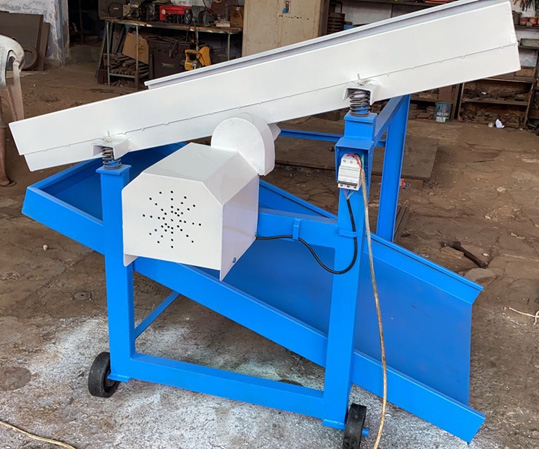

Sl

Specification

1

Capacity

5 Cum/Hr (Input)

2

Motor Power

5 HP

3

Body Material

Steel

4

Machine Speed

2800 RPM

5

Automation Grade

Automatic

6

Screen Dimension

600x1300 mm
